Product Introduction

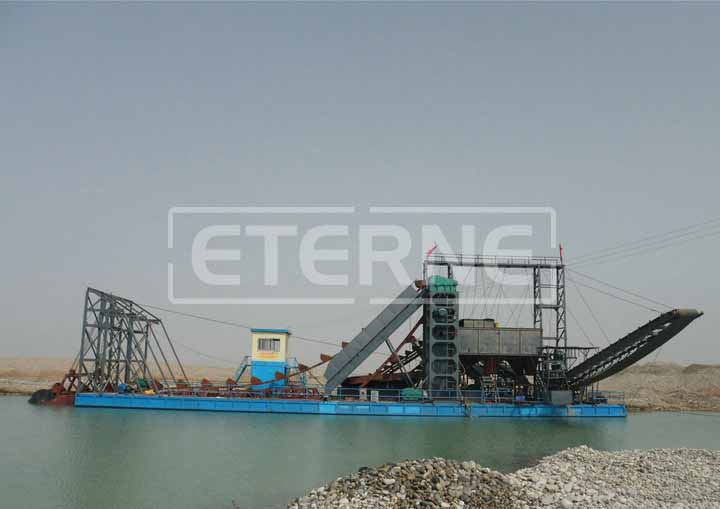

Gold Bucket Mining Dredger is used in the river or shallow water,for purpose recovery alluvial gold Gems and diamond from river sand.

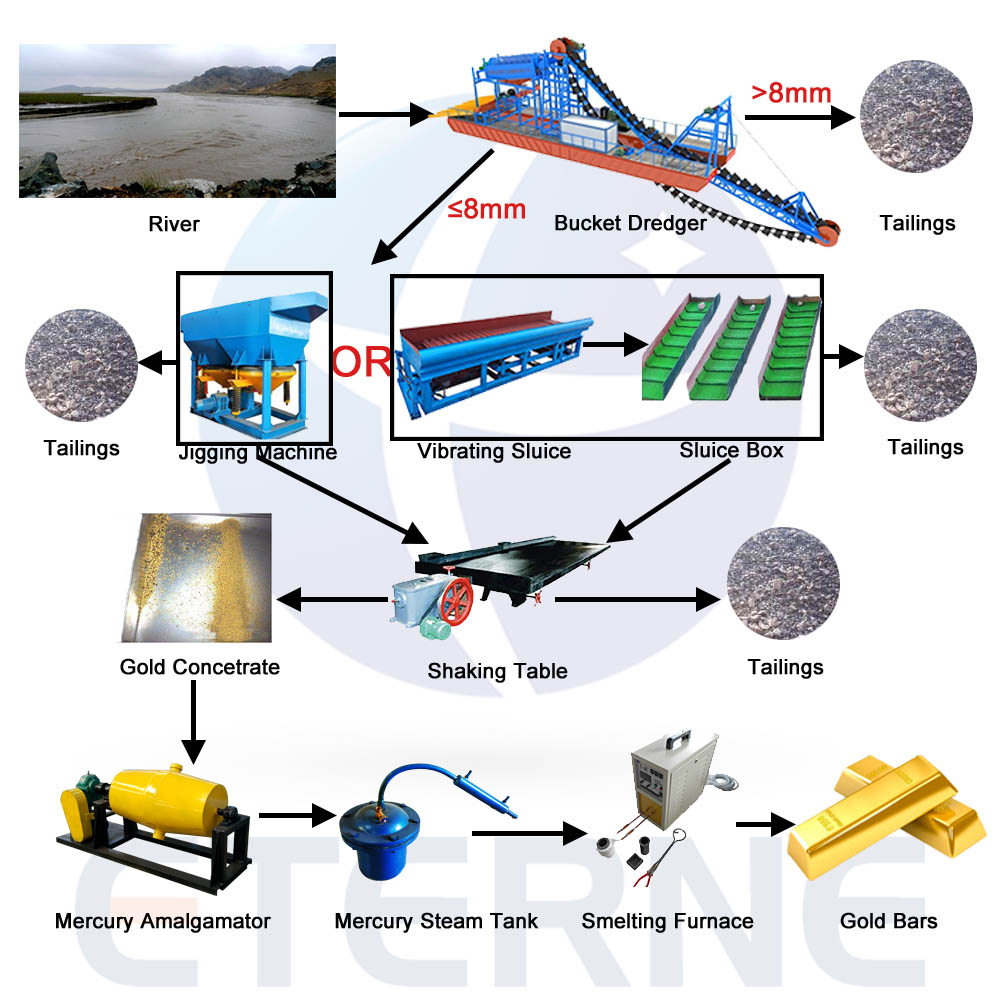

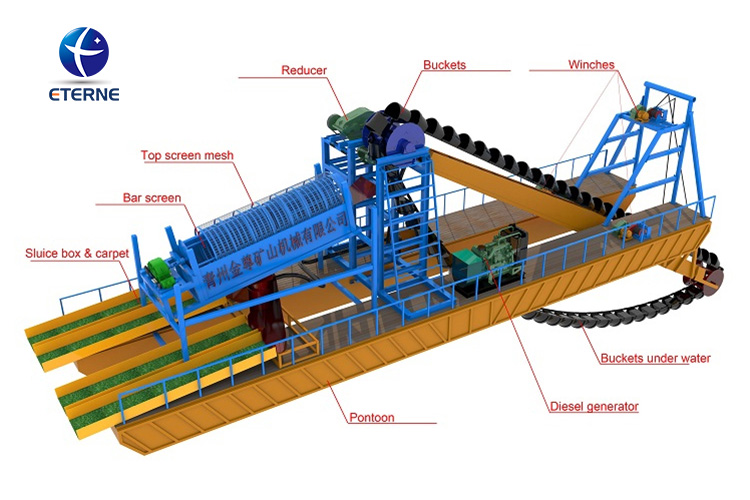

Gold Bucket dredger is a product of deformation of sand dredger. Increase the height of sand discharge, so will have sufficient space for the installation of ore concentration equipment, these equipment extract gold from the sand.
Technical Parameters For Bucket Gold Dredger | ||||
Model | BGD-6 | BGD-10 | BGD-15 | BGD-20 |
Dimension | 19*5.4*4.8 | 25*5.4*4.8 | 35*6.3*5.5 | 40*5.8*6 |
Capacity | 50-200 t/h | |||
Power | 40-55 kw | 55-75 kw | 75-100 kw | 80-120 kw |
Max.dredging depth | 6 m | 10 m | 15 m | 20 m |
Min.dredging depth | 2 m | 3 m | 8 m | 10 m |
Mesh open size | 6-20 mm | |||
Max.Dredging size | 300 mm | |||

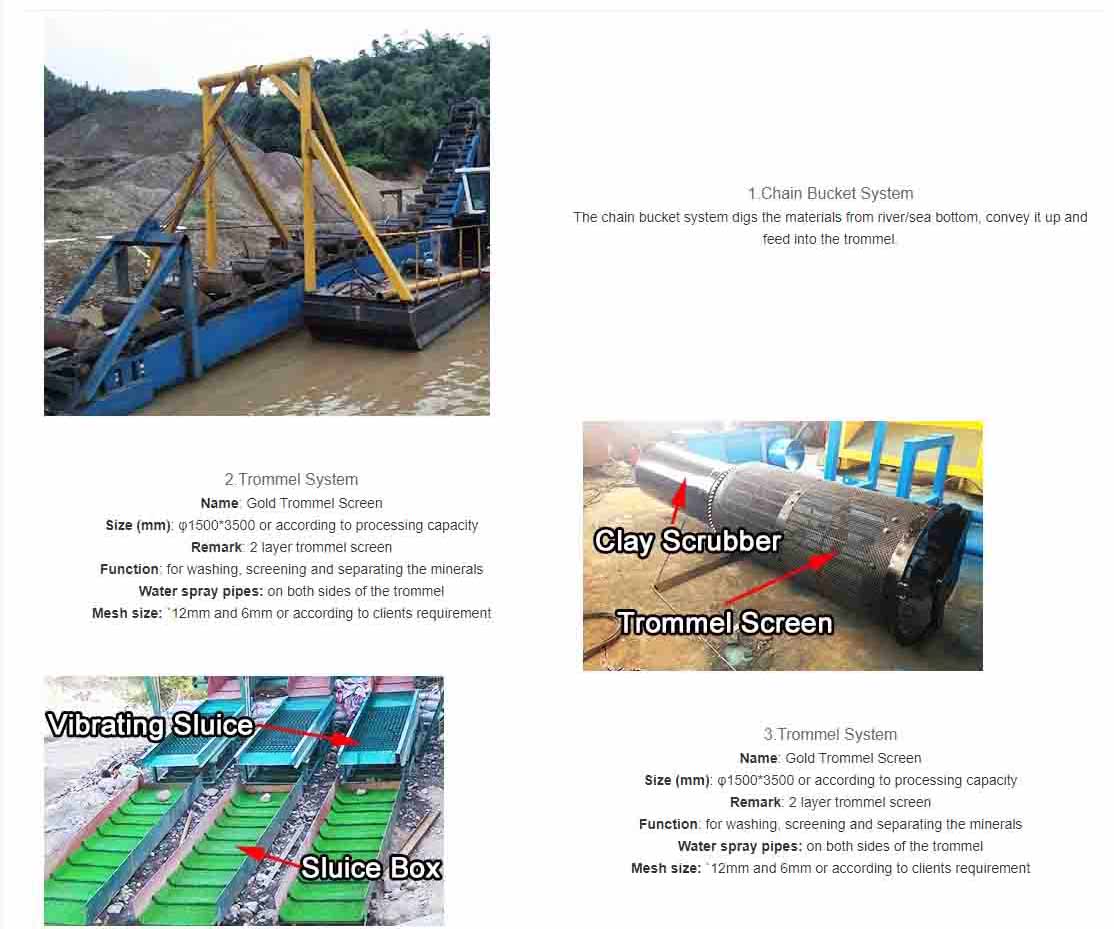

Gold separation equipment | Centrifugal concentrator, Pulsating sluice box, Gold sluice box, Jig machine(optional) | |||
